Syncro Cylinder
Synchro cylinder is used for synchronized control of usually two or more cylinders.
As for general power cylinder, if two or more are operated together, it is difficult to
achieve 100% synchronization rate due to the characteristics of motor.
In order to resolve this, 1 motor is used to operate two or more cylinders together,
so the cylinder can be operated without error.

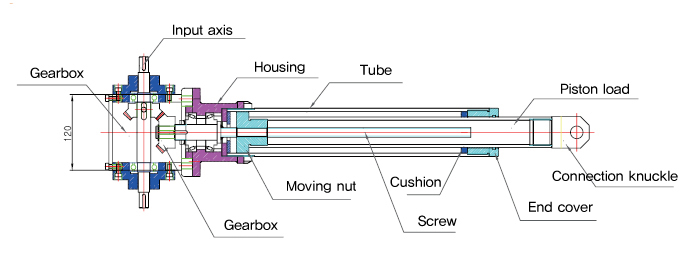

Syncro Cylinder Internal structure

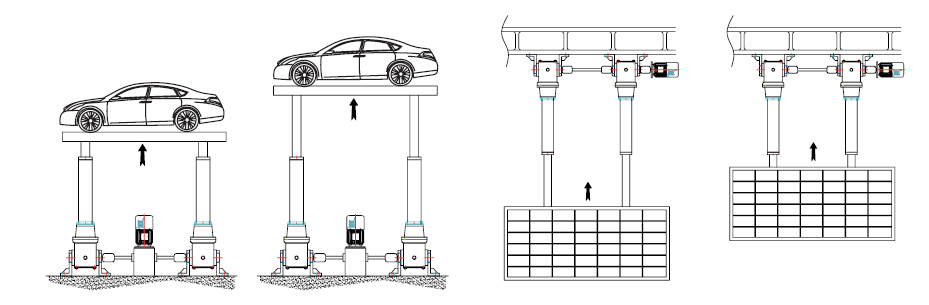

Syncro Cylinder Operation example

Usually 4 cylinders are used to install on the rectangular surface for up/down motion. The single-motor operation resolves leaning phenomenon. Applied for lift requiring heavy load and safety.

In case a broad structure cannot be operated with a single cylinder, 2 are used for accurate open/close without distortion. Mainly used for water gates, steel mills, etc.
